Vapa VML

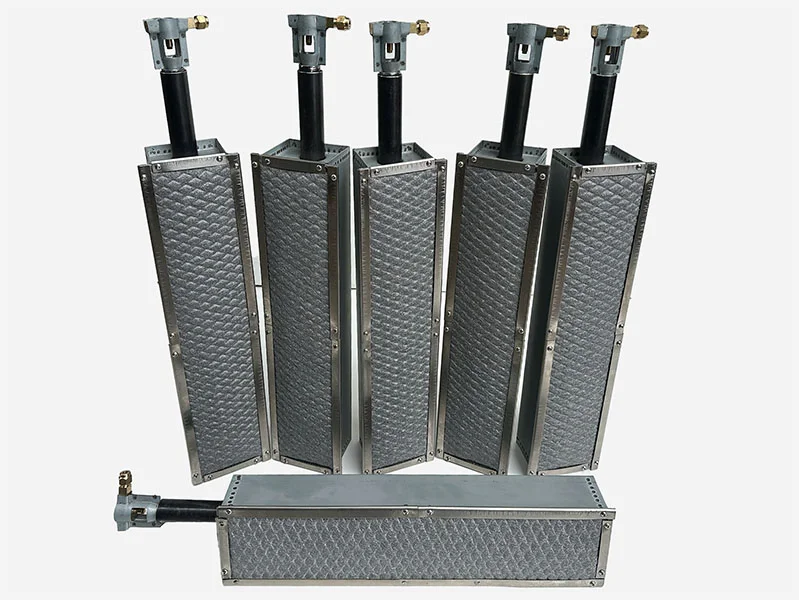

Custom Made Metallic Surface Infrared Burners
Specifications
- Custom made burners for chicken rotisseries and other cooking and heating applications
- Length ranges between 35 and 85 cm
- Width can be chosen to be 8, 10 or 13 cm
- Inlet extended venture can be selected
- The burner house material is Zincore
- All burners are equipped with heavy duty metallic surfaces
Technical Data
| Dimensions: | 17 x 24 x 5cm |
| BTU Range: | 65,000 – 110,000 BTU/H (Depending on gas pressure) |
| Gas Type: | LPG – Butane or Propane |
| Recommended Gas Pressure Range: | Min. 100 mbar – Max. 1500 mbar |
| Burner House Material: | Electro Galvanised Steel |
| Burner Frame: | Stainless Steel Industrial Grade 304 |
| Core Construction: | Drawn Steel |
| Cover Mesh: | 1100 °C Heat Resisting Alloy |
| Gas Inlet: | 1/4” Copper Pipe |
| Net Weight: | 1.3Kg |
